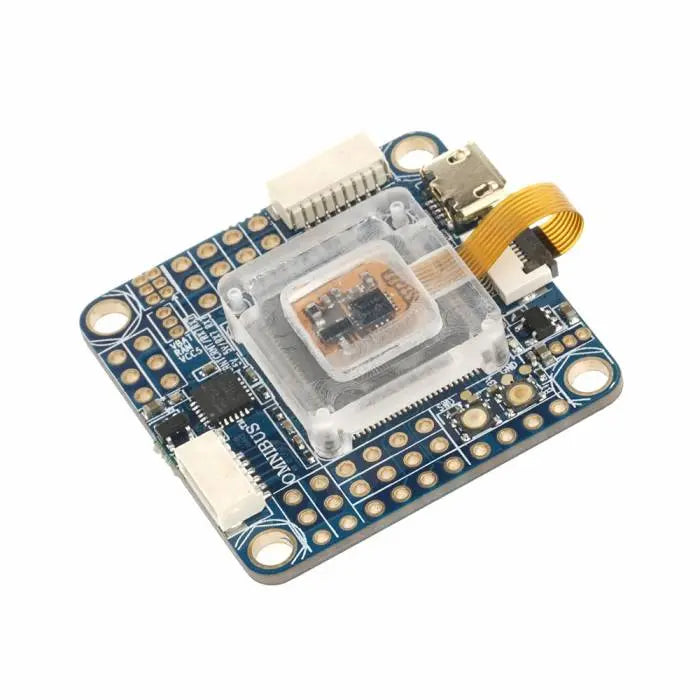

Airbot Omnibus F7 V2 Flight Controller

Airbot Omnibus F7 V2 Flight Controller

Regular price $20.00 USD
Regular price $49.00 USD Sale price $20.00 USD
Sale Sold out
View full details

About this product

With F7 chips starting to become more common, it's only a matter of time before they will be the new standard. Get ahead of the curve with Airbot's updated F7 flight controller featuring built-in betaflight OSD and two choices of gyro.

Features

  • F7 MCU - faster than the current F3 and F4 processors
  • Two gyros on the flight controller: an MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
  • Built-in betaflight OSD
  • 36x36mm, mount holes 30.5x30.5mm
  • SD card reader for recording black box data (SD card not included)
  • Supports 2-4s natively, 5-6s with 220uf 35V capacitor
  • 5v/1A regulator
  • Port for easy connection to Typhoon32 4in1 ESC (SH1.0 8P)

Specifications

  • MCU: STM32 F745 (Spi connected to Gyro)
  • MPU6000 (the 6 axis SPI Gyrometer + Accelerometer)
  • IMC268 (the 6 axis SPI Gyrometer + Accelerometer)
  • D-shot Support
  • Barometer
  • BF OSD
  • microSD
  • Blackbox
  • Size: 36x36mm
  • Mount holes: 30.5x30.5mm
  • Weight: 10g
  • Default firmware: betaflight_3.2.0_OMNIBUSF7V2
  • SBUS, IBUS, DSM2, DSMX Receiver configuration: UART2
